Pipes for Municipal Council

Reliable Piping Solutions for Efficient Urban Infrastructure

Municipal council pipes are crucial for the smooth functioning of urban infrastructure because they are responsible for seamless water, sewage, and other utilities transportation. They are important for supporting the environment and public health. Sudarshan Pipes offers well-crafted piping solutions. Designed for longevity, high efficacy, and high standards, our pipes are long-lasting, reliable, and customised to address municipal council requirements. Select us for top-notch piping solutions!

HDPE Pipes for Municipal Council

HDPE pipes have become the perfect solution for municipal needs. Our pipes are authorised by various government institutions like Rural Drinking Water Supply and Drainage Board, Minor Irrigation, Amruth I & II, MP Jal Nigam, Kerala Water Authority, Maharashtra Jal Pradhikaran, etc. With highly rigorous testing, research facilities, and 100% use of black compounded material, we offer the best HDPE pipes for municipal council.

ASPECT	DESCRIPTION
BIS Standards	IS:4984 (2016) for drinking water pipelines, IS:14333 (1996) for drainage water lines
Current Product Range	Pipes from 20 mm to 400 mm diameter in PE80/PE100
Current Installed Capacity	48,000 MTP with 16 extruders (highest in South India)
Expansion Plan	New plant for HDPE pipes (400 mm to 800 mm diameter) by December 2026
Future Installed Capacity	60,000 MTP (post-expansion)
Material Used	Pre-compounded black material ‘Borrouge’
Facilities	Highly technical manpower, in-house labs, testing and research facilities
Quality Control	Online and offline stringent quality control system
Market Position	Trusted as the top quality product.

Standards and Specifications

ASPECT	DESCRIPTION
BIS Standards	IS:4984 (2016) for drinking water pipelines, IS:14333 (1996) for drainage water lines
Current Product Range	Pipes from 20 mm to 400 mm diameter in PE80/PE100
Current Installed Capacity	48,000 MTP with 16 extruders (highest in South India)
Expansion Plan	New plant for HDPE pipes (400 mm to 800 mm diameter) by December 2026
Future Installed Capacity	60,000 MTP (post-expansion)
Material Used	Pre-compounded black material ‘Borrouge’
Facilities	Highly technical manpower, in-house labs, testing and research facilities
Quality Control	Online and offline stringent quality control system
Market Position	Trusted as the top quality product.

FEATURE	DESCRIPTION
Material Types	Medium Density Polyethylene
Applications	High-pressure water delivery in municipal areas
Advantages of MDPE Pipes	Lightweight, long life, leak-proof, abrasion resistant
Resistance Properties	Highly resistant to cracking, robust construction
Insulation & Chemical Activity	Excellent insulation properties, chemically inactive
Usability	For indoor and outdoor applications
Length of Pipes	ISO-4427-2-2019 CL-6.5 As per customer needs (200/500 Mtr)
Specifications Compliance	ISO-4427-2-2019 CL-5.1, 5.2, 6.3, 6.1, 6.2, 6.4, 6.5

MDPE Pipes for Municipal Council

Our MDPE pipes are manufactured from medium-density polyethene. Designed for superior performance in water supply systems, they are lightweight, long-lasting, and highly resistant to cracks and high impacts. Our MDPE pipes for municipal council are a cost-effective and easy-to-install solution, apt for delivering water under high pressure from the main to distribution lines. Sudarshan’s MDPE pipes are a great solution to conventional piping.

FEATURE	DESCRIPTION
Material Types	Medium Density Polyethylene
Applications	High-pressure water delivery in municipal areas
Advantages of MDPE Pipes	Lightweight, long life, leak-proof, abrasion resistant
Resistance Properties	Highly resistant to cracking, robust construction
Insulation & Chemical Activity	Excellent insulation properties, chemically inactive
Usability	For indoor and outdoor applications
Length of Pipes	ISO-4427-2-2019 CL-6.5 As per customer needs (200/500 Mtr)
Specifications Compliance	ISO-4427-2-2019 CL-5.1, 5.2, 6.3, 6.1, 6.2, 6.4, 6.5

DWC Pipes for Municipal Council

DWC or double-wall corrugated pipes are famous for their longevity and all-around nature. Whether for tubing cable networks laying under the ground or draining out sewage and wastewater, Sudarshan’s DWC Pipes for municipal council provide phenomenal outcomes. Manufactured from high-quality material, its unusual corrugated exterior and smooth interior offer phenomenal stiffness and flexibility. The seamless inner surface’s reduced friction results in uninterrupted flow. Being lightweight, our DWC pipes ensure easy handling, quick installation, and decreased costs, making our pipes best for drainage requirements.

FEATURE	DETAILS
Type	Double-wall corrugated manufactured from HDPE material
Applications	Ducting cable networks, laying underground electrical conduits, conveying sewage and wastewater
Performance	Versatile and long-lasting, providing phenomenal performance in numerous uses
Life Expectancy	Over 50 years
Extra Features	UV resistance, non-flame propagation, anti-rodent properties, weather resistance
Ease of Installation	Lightweight and flexibility ensures easy installation
Sizes and Colours	Available in many sizes and colours
Standards Compliance	IS 16205:2018 (for ducting cable) and IS 16098:2013 (for sewage and drainage)
Ideal for	Projects that require reliability and efficiency

Technical Specifications

Wall Thickness Chart As per IS 16098 (Part 2) : 2013
Nominal OD/ID		OD	ID
OD	ID	Min Wall-Thickness	Min Wall-Thickness	Socket Length
75	71	1	0.85	27
100	95	1	1	32
125	120	1.1	1	39
135	130	1.2	1	39
150	145	1.3	1	43
170	165	1.4	1	48
200	195	1.5	1.1	54
225	220	1.7	1.4	55
250	245	1.8	1.5	59
300	294	2	1.7	64
400	392	2.5	2.3	74
500	490	3	3	85
600	588	3.5	3.5	85

FEATURE	DETAILS
Type	Double-wall corrugated manufactured from HDPE material
Applications	Ducting cable networks, laying underground electrical conduits, conveying sewage and wastewater
Performance	Versatile and long-lasting, providing phenomenal performance in numerous uses
Life Expectancy	Over 50 years
Extra Features	UV resistance, non-flame propagation, anti-rodent properties, weather resistance
Ease of Installation	Lightweight and flexibility ensures easy installation
Sizes and Colours	Available in many sizes and colours
Standards Compliance	IS 16205:2018 (for ducting cable) and IS 16098:2013 (for sewage and drainage)
Ideal for	Projects that require reliability and efficiency

FEATURE	DESCRIPTION
Type	Single-wall corrugated Pipes, manufactured from high-quality HDPE
Dimension	OD 90 +- 1 mm, ID 77 +- 1 mm
Wall Thickness	Required = t = 1.8 mm +- 0.3 mm
Corrosion Resistance	Highly resistant to corrosion than conventional metallic ducts
Durability	Highly durable in nature for municipal infrastructure
Strength	Exceptional compression strength and impact resistance
Ease of Installation	Lengthy coils for effective and cost-saving construction

SWC Pipes for Municipal Council

SWC pipes are single-wall corrugated and offer various benefits for different uses, especially for municipal council infrastructure. Such pipes are primarily used as ducts for bonded post-tensioning tendons in prestressed concrete applications. With high corrosion resisting power, our SWC pipes for municipal council enhance the long-lastingness of infrastructure development. Providing great compression strength and easy installation, our SWC pipes are trusted for their proven performance in protecting pre-stressed concrete municipal infrastructure.

FEATURE	DESCRIPTION
Type	Single-wall corrugated Pipes, manufactured from high-quality HDPE
Dimension	OD 90 +- 1 mm, ID 77 +- 1 mm
Wall Thickness	Required = t = 1.8 mm +- 0.3 mm
Corrosion Resistance	Highly resistant to corrosion than conventional metallic ducts
Durability	Highly durable in nature for municipal infrastructure
Strength	Exceptional compression strength and impact resistance
Ease of Installation	Lengthy coils for effective and cost-saving construction

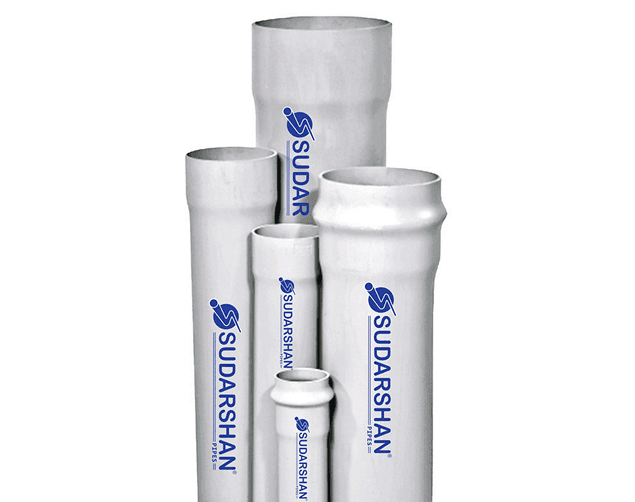

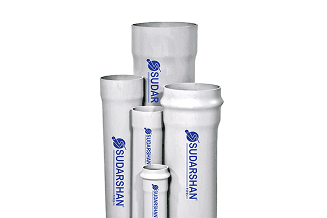

PVC Pipes for Municipal Council

As a pioneer in piping systems, we have the best PVC pipes, especially for municipal infrastructure. Sudarshan’s PVC pipes can be used for various applications, such as irrigation, water supply, industrial process lines, swimming pools, etc. Our PVC pipes for municipal council are better because of their lightweight nature. They are quick and easy to install and have excellent resisting power to tackle corrosion and chemicals.

FEATURE	DESCRIPTION
Odourless and hygienic	Due to its high contaminating power, it is best for portable water transportation
High corrosion resistance	Highly resistant chemical corrosion, ensuring durability and longevity.
High chemical resistance	High resistance to acids, oxidizing agents, alkalis, oils, and domestic effluents
Smooth bore	a seamless inner surface
Self-extinguishing quality	Does not support combustion.
Longevity	Free from scale formation, rusting, weathering, and chemical action, leading to a long lifespan.
Economical	Lightweight, easy to transport and install, which makes it more cost-effective than conventional systems.

FEATURE	DESCRIPTION
Odourless and hygienic	Due to its high contaminating power, it is best for portable water transportation
High corrosion resistance	Highly resistant chemical corrosion, ensuring durability and longevity.
High chemical resistance	High resistance to acids, oxidizing agents, alkalis, oils, and domestic effluents
Smooth bore	a seamless inner surface
Self-extinguishing quality	Does not support combustion.
Longevity	Free from scale formation, rusting, weathering, and chemical action, leading to a long lifespan.
Economical	Lightweight, easy to transport and install, which makes it more cost-effective than conventional systems.

FEATURE	DESCRIPTION
Material	Polyvinyl Chloride
Lifespan	30 years or more
Operational Cost	30% lower
Maintenance	Highly resistant to corrosion than conventional metallic ducts
Durability	No maintenance needed
Tensile Strength and Resistance	Extremely high tensile strength
Primary Use	Used with submersible pumps to draw water from 200 feet to 2100 ft deep boreholes/borewells
Installation Statistics	Successful installation in 12,00,000+ boreholes/borewells Pan India and Abroad
Global Presence	Installed in 15+ countries, including the Gulf, Africa, and Europe
Size Range	1” to 6” (32mm to 160mm)

Column Pipes for Municipal Council

Available in varying sizes, our column pipes are specifically created to draw underground water with the help of submersible motor pumps. They are also called Drop and Rise Pipes. Sudarshan’s column pipes for municipal council are manufactured from double-stage bi-axial technology and threaded with the help of CNC machines. Our pipes can withstand high internal hydrostatic pressure and have high tensile strength.

FEATURE	DESCRIPTION
Material	Polyvinyl Chloride
Lifespan	30 years or more
Operational Cost	30% lower
Maintenance	Highly resistant to corrosion than conventional metallic ducts
Durability	No maintenance needed
Tensile Strength and Resistance	Extremely high tensile strength
Primary Use	Used with submersible pumps to draw water from 200 feet to 2100 ft deep boreholes/borewells
Installation Statistics	Successful installation in 12,00,000+ boreholes/borewells Pan India and Abroad
Global Presence	Installed in 15+ countries, including the Gulf, Africa, and Europe
Size Range	1” to 6” (32mm to 160mm)

Purchase Pipes for Municipal Council from Sudarshan Pipes

Upgrade municipal infrastructure with Sudarshan Pipes. Created for long-lastingness, sustainability and efficacy, our designed pipes are perfect for all your municipal council requirements. We are the leading pipe processor in India with various infrastructure development projects and are the go-to solution for all your piping needs. We have 30+ years of experience. We have served more than 15 countries and have over 6000 dealers and 3,500+ contracts. So, why wait? Contact us and get your pipes for municipal council infrastructure!
